IQOYA SERV/LINK



Worlds most powerful AoIP codec range.

Product sheet

The power of 1U

IQOYA SERV/LINK is a powerful multi-stereo and multi-channel audio-over-IP codec that can comfortably manage up to 128 mono or 64 stereo channels. A single unit can simultaneously deliver multiple audio content to transmitter sites, WEB radio CDNs, multiplexers, and other studios, in different audio formats.

We at Digigram, listened to our customers and developed an incredibly powerful device that will deliver class-leading performance without asking for more than 1U of precious studio rack space.

IQOYA *CLOUD

Direct monitoring and management using our dedicated cloud-based application

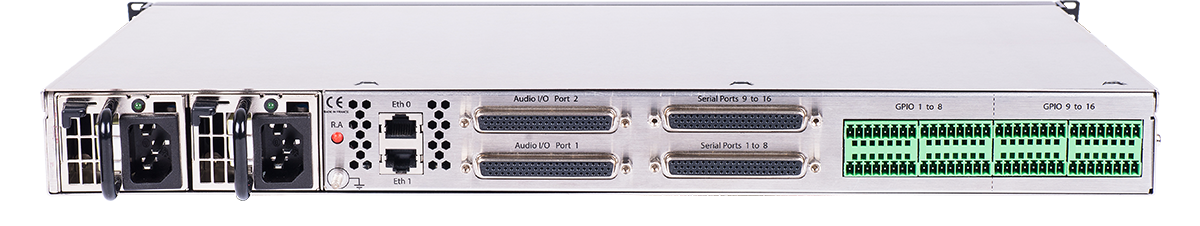

Dual hot- swappable
redundant power supplies

High density of 4 to
128 simultaneous channels
hot-swappable

2 Gbits ports for WAN audio control  and streaming

 AES/EBU  I/O and world clock synchronization

Ports RS232 ports for serial data tunneling

GPIOs for transmission
events on IP

KEY POINTS

N
Up to 128 mono and 64 stereo channels in a 1U rack.
N
High quality of service over heterogeneous networks from the Internet to managed networks.
N

Lower power consumption compared to stacked stereo codecs.

N

Multi-format audio interface versions – AES / EBU, MADI or audio-on-IP (AES67, RAVENNA or Dante).

N
Easy integration into existing SNMP based supervisors.
N
Full SIP interoperability with ACIP codecs.
“We are very impressed by the compactness of the product, along with the ease of use and the benefits of IQOYA*CLOUD to monitor the communications of the codecs. The convenience of interoperability between the IQOYA*SERV/LINK and our existing fleet of third party codecs proved that it was a wise decision to choose Digigram. It has certainly enabled us to have a smooth transition to our IP network. This system is a major asset in our MCR since it collects simultaneous live feeds from different locations during the various sporting events that we cover.”
PLAZAMEDIA, Germany.

GENERAL

1U Rack space

2 redundant 90-264VAC hot-swappable power supplies

Option: redundant power supplies -48VDC
CONNECTIVITY & NETWORKS

Following versions, from 4 to 64 stereo channels (128 mono) on analog / AES3 or MADI or AES67 / RAVENNA or Dante interfaces.

2 Ethernet Gbit ports for AoIP streaming over WAN.

2 Gbit Ethernet ports for studio control and connectivity AES67, RAVENNA or Dante (studio AoIP versions.

Option GPIO: according to versions, 8 or 16 GPIs compatible TTL and 16 GPOs on relay.

Option RS232: According to versions, 8 or 16 RS232 serial port for serial data tunneling

VLANs & QoS (VLAN Tagging, DSCP), IGMPv2 and V3.

ENCODING, DECODING & STREAMING

Compression Algorithms: PCM, 16/20/24 bit, ITU G.711 / 722, MPEG-1/2 Layer II, Layer III, MPEG-4 AAC-LC, AAC-LD, HE-AACv2, HE-AACv1 , AAC-ELD, Opus, Qualcomm aptX (option).

Full compliance ACIP (Tech 3326 and 3368) with SIP signaling (RFC3261).
Symmetric RTP mode with auto-response and automatic format recognition for non-SIP-based infrastructures.

Dual redundant SIP streaming using two available IP network links.

FUNCTIONS

Auxiliary data transfer over IP (RS232 and GPIO serial data).

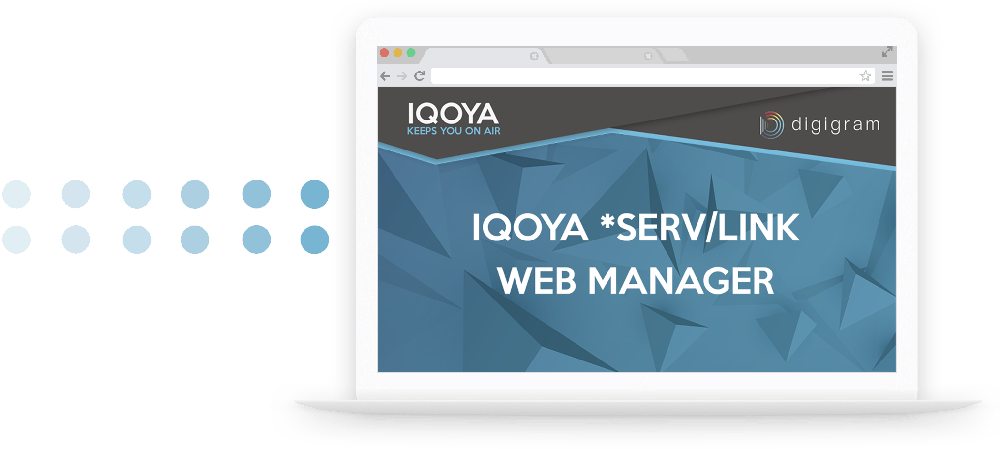

Configuration and monitoring via HTML5 and SNMP web interface.

Management of alarms by SNMP traps.

Intuitive 1-click operating interface for hub operator.

Management of ACIP flows by the IQOYA * CLOUD application and SIP infrastructure (option).
